TUGAS 6
Implementaso GUI dan Log-In
di program Image viewer ini ada 4 class seperti dibawah ini
ImageViewer
import java.awt.*;
import java.awt.event.*;
import java.awt.image.*;
import javax.swing.*;
import java.io.File;
/**
* ImageFileManager is a small utility class with static methods to load
* and save images.
*
* The files on disk can be in JPG or PNG image format. For files written
* by this class, the format is determined by the constant IMAGE_FORMAT.
*
* @author Vania Meilani T.
* @version 1.0
*/
public class ImageViewer
{
private static final String VERSION = "Version 1.0";
private static JFileChooser fileChooser = new JFileChooser(System.getProperty("user.dir"));
private JFrame frame;
private ImagePanel imagePanel;
private JLabel filenameLabel;
private JLabel statusLabel;
private OFImage currentImage;
public ImageViewer()
{
currentImage = null;
makeFrame();
}
private void openFile()
{
int returnVal = fileChooser.showOpenDialog(frame);
if(returnVal != JFileChooser.APPROVE_OPTION) {
return;
}
File selectedFile = fileChooser.getSelectedFile();
currentImage = ImageFileManager.loadImage(selectedFile);
if(currentImage == null) { // image file was not a valid image
JOptionPane.showMessageDialog(frame,
"The file was not in a recognized image file format.",
"Image Load Error",
JOptionPane.ERROR_MESSAGE);
return;
}
imagePanel.setImage(currentImage);
showFilename(selectedFile.getPath());
showStatus("File loaded.");
frame.pack();
}
private void close()
{
currentImage = null;
imagePanel.clearImage();
showFilename(null);
}
private void quit()
{
System.exit(0);
}
private void makeDarker()
{
if(currentImage != null) {
currentImage.darker();
frame.repaint();
showStatus("Applied: darker");
}
else {
showStatus("No image loaded.");
}
}
private void makeLighter()
{
if(currentImage != null) {
currentImage.lighter();
frame.repaint();
showStatus("Applied: lighter");
}
else {
showStatus("No image loaded.");
}
}
private void threshold()
{
if(currentImage != null) {
currentImage.threshold();
frame.repaint();
showStatus("Applied: threshold");
}
else {
showStatus("No image loaded.");
}
}
private void showAbout()
{
JOptionPane.showMessageDialog(frame,
"ImageViewer\n" + VERSION,
"About ImageViewer",
JOptionPane.INFORMATION_MESSAGE);
}
private void showFilename(String filename)
{
if(filename == null) {
filenameLabel.setText("No file displayed.");
}
else {
filenameLabel.setText("File: " + filename);
}
}
private void showStatus(String text)
{
statusLabel.setText(text);
}
private void makeFrame()
{
frame = new JFrame("ImageViewer");
makeMenuBar(frame);
Container contentPane = frame.getContentPane();
contentPane.setLayout(new BorderLayout(6, 6));
filenameLabel = new JLabel();
contentPane.add(filenameLabel, BorderLayout.NORTH);
imagePanel = new ImagePanel();
contentPane.add(imagePanel, BorderLayout.CENTER);
statusLabel = new JLabel(VERSION);
contentPane.add(statusLabel, BorderLayout.SOUTH);
showFilename(null);
frame.pack();
Dimension d = Toolkit.getDefaultToolkit().getScreenSize();
frame.setLocation(d.width/2 - frame.getWidth()/2, d.height/2 - frame.getHeight()/2);
frame.setVisible(true);
}
private void makeMenuBar(JFrame frame)
{
final int SHORTCUT_MASK =
Toolkit.getDefaultToolkit().getMenuShortcutKeyMask();
JMenuBar menubar = new JMenuBar();
frame.setJMenuBar(menubar);
JMenu menu;
JMenuItem item;
menu = new JMenu("File");
menubar.add(menu);
item = new JMenuItem("Open");
item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_O, SHORTCUT_MASK));
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { openFile(); }
});
menu.add(item);
item = new JMenuItem("Close");
item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_W, SHORTCUT_MASK));
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { close(); }
});
menu.add(item);
menu.addSeparator();
item = new JMenuItem("Quit");
item.setAccelerator(KeyStroke.getKeyStroke(KeyEvent.VK_Q, SHORTCUT_MASK));
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { quit(); }
});
menu.add(item);
menu = new JMenu("Filter");
menubar.add(menu);
item = new JMenuItem("Darker");
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { makeDarker(); }
});
menu.add(item);
item = new JMenuItem("Lighter");
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { makeLighter(); }
});
menu.add(item);
item = new JMenuItem("Threshold");
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { threshold(); }
});
menu.add(item);
menu = new JMenu("Help");
menubar.add(menu);
item = new JMenuItem("About ImageViewer...");
item.addActionListener(new ActionListener() {
public void actionPerformed(ActionEvent e) { showAbout(); }
});
menu.add(item);
}
}
ImagePanel
import java.awt.*;
import javax.swing.*;
import java.awt.image.*;
/**
* An ImagePanel is a Swing component that can display an OFImage.
* It is constructed as a subclass of JComponent with the added functionality
* of setting an OFImage that will be displayed on the surface of this
* component.
*
*/
public class ImagePanel extends JComponent
{
// The current width and height of this panel
private int width, height;
// An internal image buffer that is used for painting. For
// actual display, this image buffer is then copied to screen.
private OFImage panelImage;
/**
* Create a new, empty ImagePanel.
*/
public ImagePanel()
{
width = 360; // arbitrary size for empty panel
height = 240;
panelImage = null;
}
/**
* Set the image that this panel should show.
*
* @param image The image to be displayed.
*/
public void setImage(OFImage image)
{
if(image != null) {
width = image.getWidth();
height = image.getHeight();
panelImage = image;
repaint();
}
}
/**
* Clear the image on this panel.
*/
public void clearImage()
{
Graphics imageGraphics = panelImage.getGraphics();
imageGraphics.setColor(Color.LIGHT_GRAY);
imageGraphics.fillRect(0, 0, width, height);
repaint();
}
// The following methods are redefinitions of methods
// inherited from superclasses.
/**
* Tell the layout manager how big we would like to be.
* (This method gets called by layout managers for placing
* the components.)
*
* @return The preferred dimension for this component.
*/
public Dimension getPreferredSize()
{
return new Dimension(width, height);
}
/**
* This component needs to be redisplayed. Copy the internal image
* to screen. (This method gets called by the Swing screen painter
* every time it want this component displayed.)
*
* @param g The graphics context that can be used to draw on this component.
*/
public void paintComponent(Graphics g)
{
Dimension size = getSize();
g.clearRect(0, 0, size.width, size.height);
if(panelImage != null) {
g.drawImage(panelImage, 0, 0, null);
}
}
}
ImageFileManager
import java.awt.image.*;
import javax.imageio.*;
import java.io.*;
/**
* ImageFileManager is a small utility class with static methods to load
* and save images.
*
* The files on disk can be in JPG or PNG image format. For files written
* by this class, the format is determined by the constant IMAGE_FORMAT.
*
*/
public class ImageFileManager
{
// A constant for the image format that this writer uses for writing.
// Available formats are "jpg" and "png".
private static final String IMAGE_FORMAT = "jpg";
/**
* Read an image file from disk and return it as an image. This method
* can read JPG and PNG file formats. In case of any problem (e.g the file
* does not exist, is in an undecodable format, or any other read error)
* this method returns null.
*
* @param imageFile The image file to be loaded.
* @return The image object or null is it could not be read.
*/
public static OFImage loadImage(File imageFile)
{
try {
BufferedImage image = ImageIO.read(imageFile);
if(image == null || (image.getWidth(null) < 0)) {
// we could not load the image - probably invalid file format
return null;
}
return new OFImage(image);
}
catch(IOException exc) {
return null;
}
}
/**
* Write an image file to disk. The file format is JPG. In case of any
* problem the method just silently returns.
*
* @param image The image to be saved.
* @param file The file to save to.
*/
public static void saveImage(OFImage image, File file)
{
try {
ImageIO.write(image, IMAGE_FORMAT, file);
}
catch(IOException exc) {
return;
}
}
}
OFImage
import java.awt.*;
import java.awt.image.*;
import javax.swing.*;
/**
* OFImage is a class that defines an image in OF (Objects First) format.
*/
public class OFImage extends BufferedImage
{
/**
* Create an OFImage copied from a BufferedImage.
* @param image The image to copy.
*/
public OFImage(BufferedImage image)
{
super(image.getColorModel(), image.copyData(null),
image.isAlphaPremultiplied(), null);
}
/**
* Create an OFImage with specified size and unspecified content.
* @param width The width of the image.
* @param height The height of the image.
*/
public OFImage(int width, int height)
{
super(width, height, TYPE_INT_RGB);
}
/**
* Set a given pixel of this image to a specified color. The
* color is represented as an (r,g,b) value.
* @param x The x position of the pixel.
* @param y The y position of the pixel.
* @param col The color of the pixel.
*/
public void setPixel(int x, int y, Color col)
{
int pixel = col.getRGB();
setRGB(x, y, pixel);
}
/**
* Get the color value at a specified pixel position.
* @param x The x position of the pixel.
* @param y The y position of the pixel.
* @return The color of the pixel at the given position.
*/
public Color getPixel(int x, int y)
{
int pixel = getRGB(x, y);
return new Color(pixel);
}
/**
* Make this image a bit darker.
*/
public void darker()
{
int height = getHeight();
int width = getWidth();
for(int y = 0; y < height; y++) {
for(int x = 0; x < width; x++) {
setPixel(x, y, getPixel(x, y).darker());
}
}
}
/**
* Make this image a bit lighter.
*/
public void lighter()
{
int height = getHeight();
int width = getWidth();
for(int y = 0; y < height; y++) {
for(int x = 0; x < width; x++) {
setPixel(x, y, getPixel(x, y).brighter());
}
}
}
/**
* Perform a three level threshold operation.
* That is: repaint the image with only three color values:
* white, gray, and black.
*/
public void threshold()
{
int height = getHeight();
int width = getWidth();
for(int y = 0; y < height; y++) {
for(int x = 0; x < width; x++) {
Color pixel = getPixel(x, y);
int brightness = (pixel.getRed() + pixel.getBlue() + pixel.getGreen()) / 3;
if(brightness <= 85) {
setPixel(x, y, Color.BLACK);
}
else if(brightness <= 170) {
setPixel(x, y, Color.GRAY);
}
else {
setPixel(x, y, Color.WHITE);
}
}
}
}
}
Berikut ini adalah hasil dari program diatas
Normal
Darker
Lighter

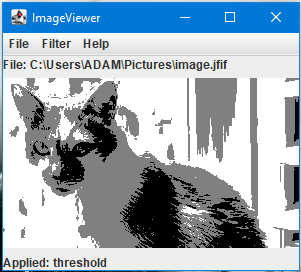

Threshold
LogIn
Diprogram ini hanya ada 1 class seperti dibawah ini
import javax.swing.*;
import java.awt.*;
import java.awt.event.*;
public class Login{
String Username = "yow";
String Password = "bruh";
String msg = " ";
private JTextField txtUsername;
private JPasswordField txtPassword;
public static void main(String[] args){
Login gui = new Login();
gui.go();
}
public void go(){
JFrame frame = new JFrame();
frame.setDefaultCloseOperation(JFrame.EXIT_ON_CLOSE);
JPanel panel = new JPanel();
JLabel lblUsername = new JLabel("Username:");
JLabel lblPassword = new JLabel("Password:");
txtUsername = new JTextField(20);
txtPassword = new JPasswordField(20);
JButton btnLogin = new JButton("Login");
btnLogin.addActionListener(new LoginListener());
JButton btnCancel = new JButton("Cancel");
btnCancel.addActionListener(new CancelListener());
panel.add(lblUsername);
panel.add(txtUsername);
panel.add(lblPassword);
panel.add(txtPassword);
panel.add(btnLogin);
panel.add(btnCancel);
frame.getContentPane().add(BorderLayout.CENTER,panel);
frame.setSize(300,300);
frame.setVisible(true);
}
public class LoginListener implements ActionListener{
public void actionPerformed(ActionEvent event){
if(Username.equals(txtUsername.getText())){
if(Password.equals(txtPassword.getText())){
msg = "Login success!";
}else{
msg = "Login failed!";
}
}else{
msg = "The username or password incorrect. Please try again!";
}
JOptionPane.showMessageDialog(null,msg);
}
}
public class CancelListener implements ActionListener{
public void actionPerformed(ActionEvent event){
txtUsername.setText("");
txtPassword.setText("");
txtUsername.requestFocus();
}
}
}
Berikut adalah hasi dari program
Sebelum memasukan password
sesudah memasukan Username dan Password
Bila salah Passoword atau Username salah
Bila Password dan User benar
Komentar
Posting Komentar
